信息：

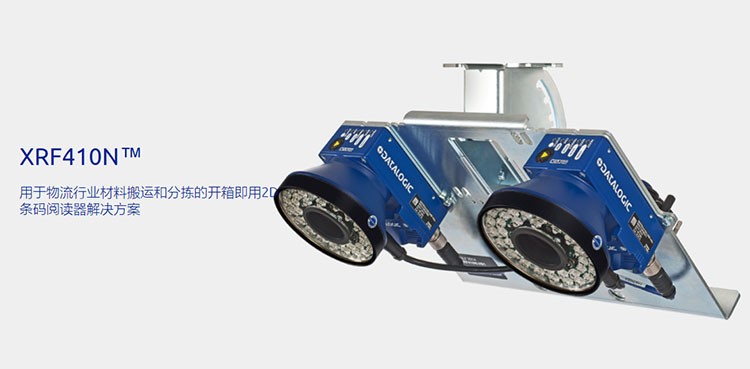

XRF410N™以其更大的閱讀范圍而命名，是一個基于Matrix 410N™平臺的解決方案，用于物流行業的材料搬運和分揀。XRF410N™為各種物料的搬運應用而設計制造，中型物體運輸速度可達2.2 m/s (433 fpm)，典型掃描深度400 mm (15.7 in.)。TheXRF410N™是電子商務小型物件訂單自動執行系統或郵政物流分揀應用的解決方案。
特點/優勢：
XRF410N™是一款功能齊全的Matrix解決方案，在工廠進行預組裝和配置，簡化了現場快速安裝。
XRF410N™運行Datalogic得利捷解碼引擎，能夠成功掃描難以閱讀、損壞或質量差的條碼
CBX500接線盒可選配顯示器和存儲器塊，以便在出現故障時自動更換閱讀器。專利綠點提供良好的讀取反饋，便于驗證。
無需進行技術分析。只需條碼尺寸、輸送機寬度和速度，即可確定XRF410N™的正確版本...，它只是一個單一的部件號！
采用申請專利中的PackTrack 2D技術，XRF410N非常適合內部短距離間隙的高速分揀（如交叉帶、拼合盤）
XRF410N™配備了DL.CODE軟件，通過實時圖像顯示、圖形配置、嵌入式閱讀統計和診斷功能，使用更加輕松愉快
應用：
Thisproduct series has been developed to satisfy to requirements of the followingreference applications:
E-Commerce
XRF410Nis the perfect solution for ECommerce, with a reconfigured retail code EAN/UPC0.25 mm (10 mil) resolution, a small cell gap with 2D PackTrack software andcode reconstruction for polybags.
General material handling with reusable totes
XRF410Nis optimal for reusable totes identification over handling systems. Complexoperations including scanning the objects inside totes are simplified by theXRF410N’s large, real time Depthof Field (DOF).
End-of-line
XRF410Nis designed to fit medium speed material handling, such as end-of-linemanufacturing, with a price level equivalent to entry-level scanningtechnology.
Postal Sorting
XRF410Nis optimal for top reading of flyers, letters and small parcels typical in thepostal environment.
Medium object sortation for couriers
XRF410Nis a perfect fit for medium size conveyors in logistics productions.
For instance, a single XRF410N covers a 600 mm conveyor with, with a DOF of 400at 2.2 m/s.
產品序列提供以下型號:
| 產品訂貨號 | 產品描述 |
| XRF Modules | |
| 937400028 | RF410N-B00 2HD_MED RES_MASTER |
| 937400029 | XRF410N-B10 2HD_HI RES_MASTER |
| 937400030 | XRF410N-H00 2HD_HI PERF_MED RES_MASTER |
| 937400031 | XRF410N-H10 2HD_HI PERF_HI RES_MASTER |
| 937400032 | XRF410N-H20 2HD_HI PERF_VHI RES_MASTER |
| 937400033 | XRF410N-B01 2HD_MED RES_EXTENSION |
| 937400034 | XRF410N-B11 2HD_HI RES_EXTENSION |
| 937400035 | XRF410N-H01 2HD_HI PERF_MED RES_EXTENS |
| 937400036 | XRF410N-H11 2HD_HI PERF_HI RES_EXTENS |
| 937400037 | XRF410N-H21 2HD_HI PERF_VHI RES_EXTENS |
| Pre-assembled spare parts | |
| 937400038 | MATRIX 410N XRF-B0x SPARE UNIT-REPLMNT |
| 937400039 | MATRIX 410N XRF-B1x SPARE UNIT-REPLMNT |
| 937400040 | MATRIX 410N XRF-H0x SPARE UNIT-REPLMNT |
| 937400041 | MATRIX 410N XRF-H1x SPARE UNIT-REPLMNT |
| 937400042 | MATRIX 410N XRF-H2x SPARE UNIT-REPLMNT |
